Sonoff WS01STPF-E Traditional Wall Socket (Type F)
Choose a proven solution that ensures a stable and safe power supply every day. The Sonoff WS01STPF-E is a classic Type F (Schuko) wall socket, rated for a load of up to 4000 W and a maximum current of 16 A. Its robust construction, wear resistance, and compatibility with popular mounting standards make it ideal for any home electrical installation. The product is also compatible with Sonoff Fusion series devices.
Robust construction and durable materials
The outlet is made of high-quality PC plastic, which is distinguished by its resistance to high temperatures and harsh operating conditions. This solution effectively reduces the risk of overheating and increases installation safety. Additionally, the conductive components used ensure high conductivity and resistance to oxidation and wear, which translates to long and trouble-free operation.
Safety and reliability every day
The WS01STPF-E model was designed for safe use in every home. It supports a continuous load of 16 A, allowing you to safely connect demanding appliances such as kettles or other household appliances. The built-in child lock protects the youngest from accidental contact with the electrical system, and the relay’s durability (up to 20,000 cycles) and corrosion resistance, confirmed by salt spray chamber tests, ensure reliability over a long service life.
Compatibility and Versatile Use
The outlet is compatible with popular F, C, and F & E (CEE 7/7) plugs, allowing you to easily connect most devices used in Europe. The product is designed for indoor use and fits standard 86-type mounting boxes as well as European 60 mm diameter boxes, making installation easy.
Well-thought-out design and easy installation

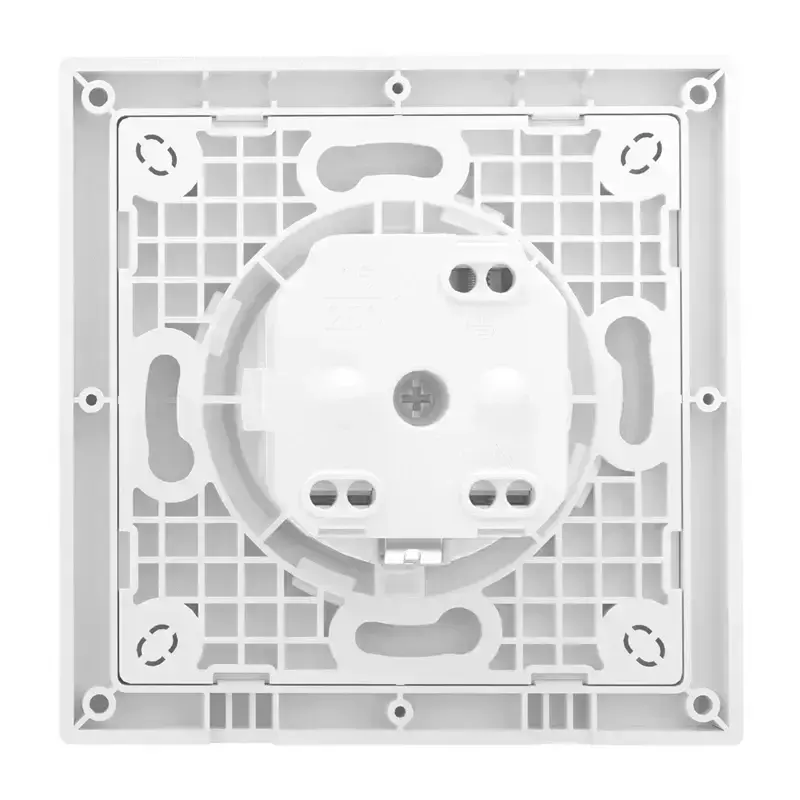

Its compact dimensions (86 × 86 mm) and depth of approximately 39.6 mm ensure that the outlet fits flush against the wall and does not take up much space. In addition, clear terminal markings (L, N, and ground) facilitate proper wire connection, which speeds up installation and minimizes the risk of installation errors.
ManufacturerSonoffModelWS01STPF-ETypeType F (Schuko)Rated voltage100–250 V ~ 50/60 HzMaximum load4000 WMaximum current16 AHousing materialPCOperating temperatureFrom -10°C to 40°COperating humidity5–95% RH (non-condensing)ApplicationFor indoor useDimensions86 × 86 × 39.6 mmCompatible mounting boxesStandard 86-type mounting boxes, European mounting boxes with a diameter of 60 mmCompatible plugsF, C, F & E (CEE 7/7)
